| Model | ZS-620 | |||||
| Detection width (mm) | 600mm | 600mm | 600mm | 600mm | 600mm | 600mm |
| Detection height (mm) | 100mm | 120mm | 150mm | 200mm | 250mm | 300mm |
| Sensitivity | Fe: ≥0.8mm | Fe: ≥1.0mm | Fe: ≥1.2mm | Fe: ≥1.5mm | Fe: ≥2.0mm | Fe: ≥2.5mm |
| Detection width | 600mm | |||||
| Sensitivity modulation | Level 100 | |||||
| Power supply | Single-phase AC200V or 11VAC /150W | |||||
| Conveying speed | Fixed speed 28m/or adjustable speed 10-30m/min(speed can be customized) | |||||
| Belt width | 560mm | |||||
| Motor power | 60w | |||||
| Detection method | Magnet induction | |||||
| Net weight | 190Kg | |||||
| Dimensions data | 1650x1030x900mm | 1650x1030x920mm | 1650x1030x950mm | 1650x1030x1000mm | 1650x1030x1050mm | 1650x1030x1100mm |
| Packing size | 1720x1100x1020mm | 1720x1100x1040mm | 1720x1100x1070mm | 1720x1100x1120mm | 1720x1100x1170mm | 1720x1100x1220mm |

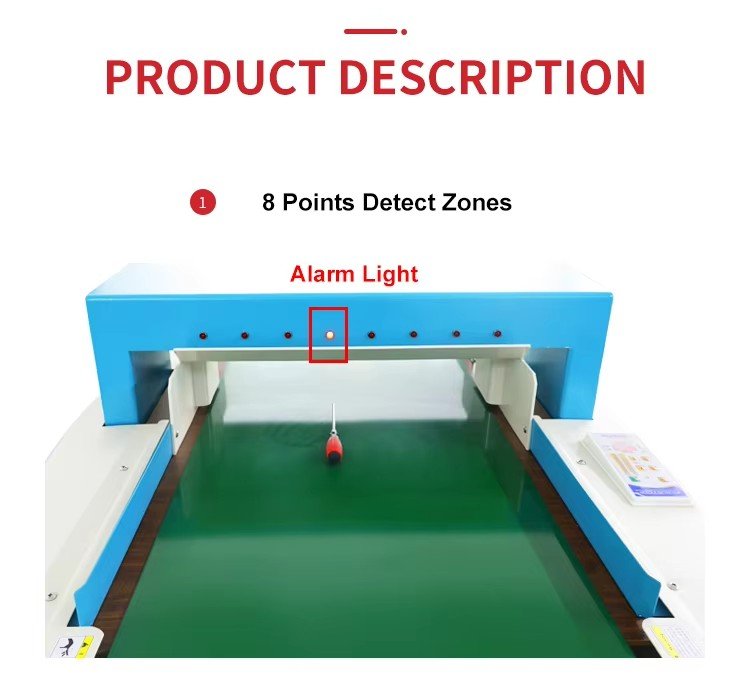

🧲 Ultra-Sensitive Needle DetectionAdvanced magnetic detection coils and digital signal processing locate broken needles or ferrous fragments as small as 0.8 mm, protecting garments and end users.
⚡ High-Speed Scanning
Maintains rapid conveyor throughput while delivering instant detection and rejection, keeping production lines efficient and uninterrupted.
🛡️ Safe & Reliable Design
PLC-controlled system with automatic stop and audible/visual alarms ensures operator safety and continuous, fault-free operation.
🔄 Automatic Reject Mechanism
Fast pneumatic or mechanical ejectors remove contaminated items without halting production, minimizing downtime and material loss.
⚙️ Customizable Aperture & Conveyor Options
Available in multiple tunnel sizes, belt widths, and sensitivity levels to suit various garment types and factory layouts.
🧩 Easy Integration & Maintenance
Compact, modular construction installs seamlessly on existing sewing or finishing lines. Quick-access panels simplify cleaning and service.
🌿 Energy-Efficient Operation
Optimized circuitry and intelligent standby mode reduce power consumption while ensuring stable 24/7 performance.
🌍 Global Compliance & Certification
Meets international standards, including EU CE and ISO 9001, ensuring dependable performance and smooth global distribution.
