| Model | ZS-600 Customized Height | |||
| Detection width (mm) | 600mm | 600mm | 600mm | 600mm |
| Detection height (mm) | 300mm | 350mm | 400mm | 500mm |
| Sensitivity | Fe: ≥2.5mm | Fe: ≥3.0mm | Fe: ≥4mm | Fe: ≥5mm |
Alarm method |
Buzz,Belt stop,Belt return | |||
| Sensitivity modulation | Level 100 | |||
| Power supply | Single-phase AC200V or 11VAC /150W | |||
| Conveying speed | Fixed speed 28m/or adjustable speed 10-30m/min(speed can be customized) | |||
| Belt width | 560mm | |||
| Motor power | 90w | |||
| Detection method | Magnet induction | |||
| Net weight | 270Kg | |||
Dimensions data |
1650x1030x1100mm | 1650x1030x1150mm | 1650x1030x1200mm | 1650x1030x1300mm |
Packing size |
1720x1100x1250mm | 1720x1100x1300mm | 1720x1100x1350mm | 1720x1100x1450mm |

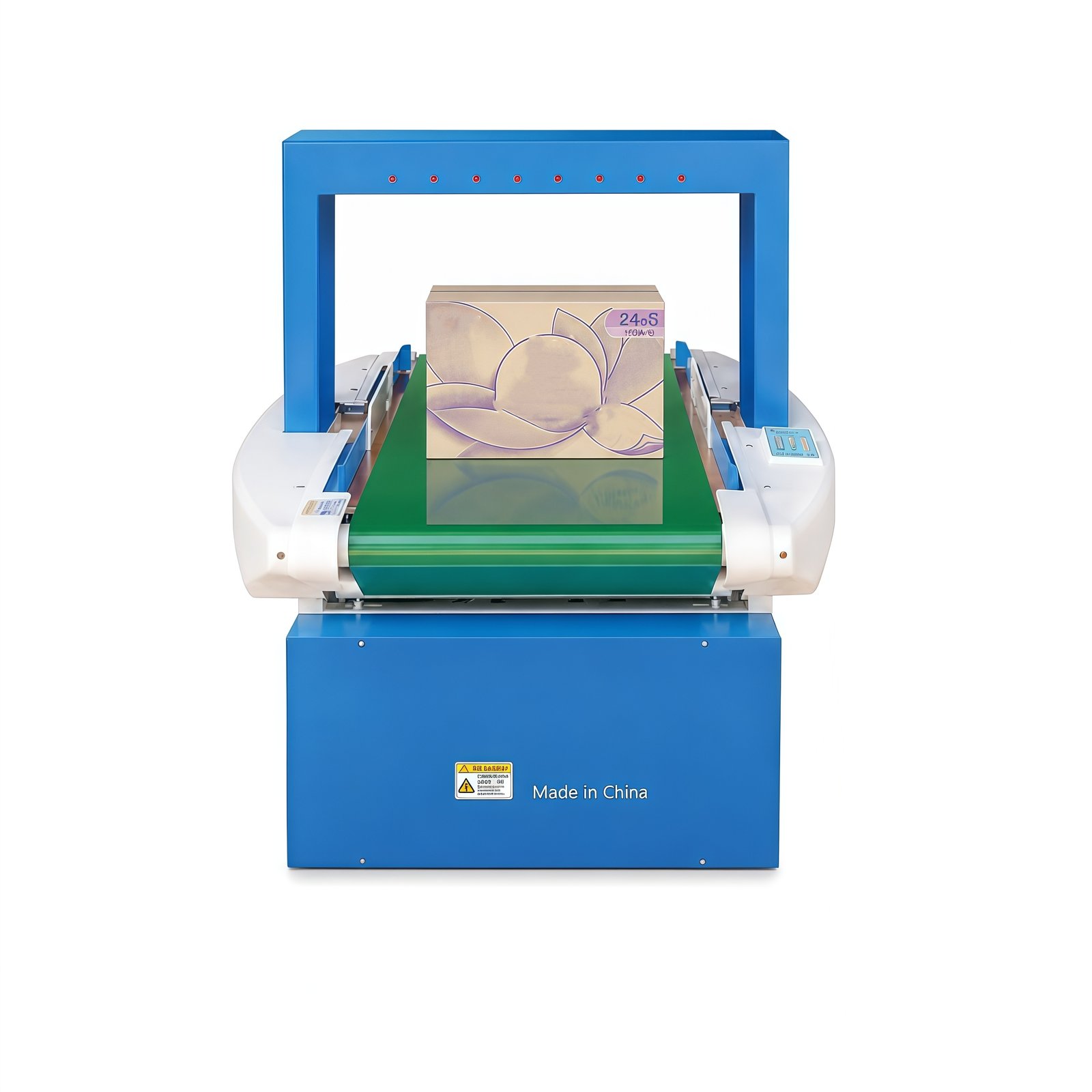

Highly customized inspection machine, capable of meeting various height requirements for detection, to achieve the purpose of detecting metals.
🧲 Ultra-Sensitive Needle DetectionAdvanced magnetic detection coils and digital signal processing locate broken needles or ferrous fragments as small as 0.8 mm, protecting garments and end users.
⚡ High-Speed Scanning
Maintains rapid conveyor throughput while delivering instant detection and rejection, keeping production lines efficient and uninterrupted.
🛡️ Safe & Reliable Design
PLC-controlled system with automatic stop and audible/visual alarms ensures operator safety and continuous, fault-free operation.
🔄 Automatic Reject Mechanism
Fast pneumatic or mechanical ejectors remove contaminated items without halting production, minimizing downtime and material loss.
⚙️ Customizable Aperture & Conveyor Options
Available in multiple tunnel sizes, belt widths, and sensitivity levels to suit various garment types and factory layouts.
🧩 Easy Integration & Maintenance
Compact, modular construction installs seamlessly on existing sewing or finishing lines. Quick-access panels simplify cleaning and service.
🌿 Energy-Efficient Operation
Optimized circuitry and intelligent standby mode reduce power consumption while ensuring stable 24/7 performance.
🌍 Global Compliance & Certification
Meets international standards, including EU CE and ISO 9001, ensuring dependable performance and smooth global distribution.
