Detection width |
600mm-2400mm | |||
| Detection height (mm) | 100mm | 120mm | 150mm | 200mm |
| Sensitivity | Fe: ≥0.8mm | Fe: ≥1.0mm | Fe: ≥1.2mm | Fe: ≥1.5mm |
| Perceivable metal | Ferrous | |||

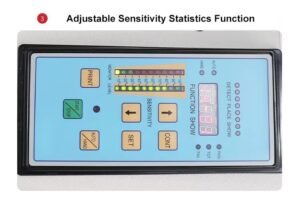

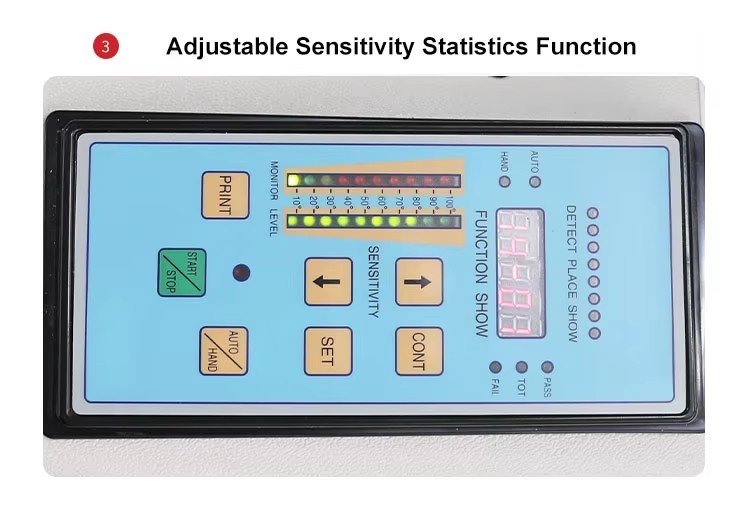

| Sensitivity modulation | Level 100 | |||
| Power supply | Single-phase AC200V or 11VAC/150W | |||
| Conveying speed | Fixed speed 28m/or adjustable speed 10-30m/min(speed can be customized) | |||
| Belt width | 560*2mm | |||
| Motor power | 120w | |||
| Detection method | Magnet induction | |||
| Net weight | 400Kg | |||
Ultra-Sensitive Needle DetectionAdvanced magnetic detection coils and digital signal processing locate broken needles or ferrous fragments as small as 0.8 mm, protecting garments and end users.
High-Speed Scanning
Maintains rapid conveyor throughput while delivering instant detection and rejection, keeping production lines efficient and uninterrupted.
Safe & Reliable Design
PLC-controlled system with automatic stop and audible/visual alarms ensures operator safety and continuous, fault-free operation.
Automatic Reject Mechanism
Fast pneumatic or mechanical ejectors remove contaminated items without halting production, minimizing downtime and material loss.
Customizable Aperture & Conveyor Options
Available in multiple tunnel sizes, belt widths, and sensitivity levels to suit various garment types and factory layouts.
Easy Integration & Maintenance
Compact, modular construction installs seamlessly on existing sewing or finishing lines. Quick-access panels simplify cleaning and service.
Energy-Efficient Operation
Optimized circuitry and intelligent standby mode reduce power consumption while ensuring stable 24/7 performance.
Global Compliance & Certification
Meets international standards, including EU CE and ISO 9001, ensuring dependable performance and smooth global distribution.
